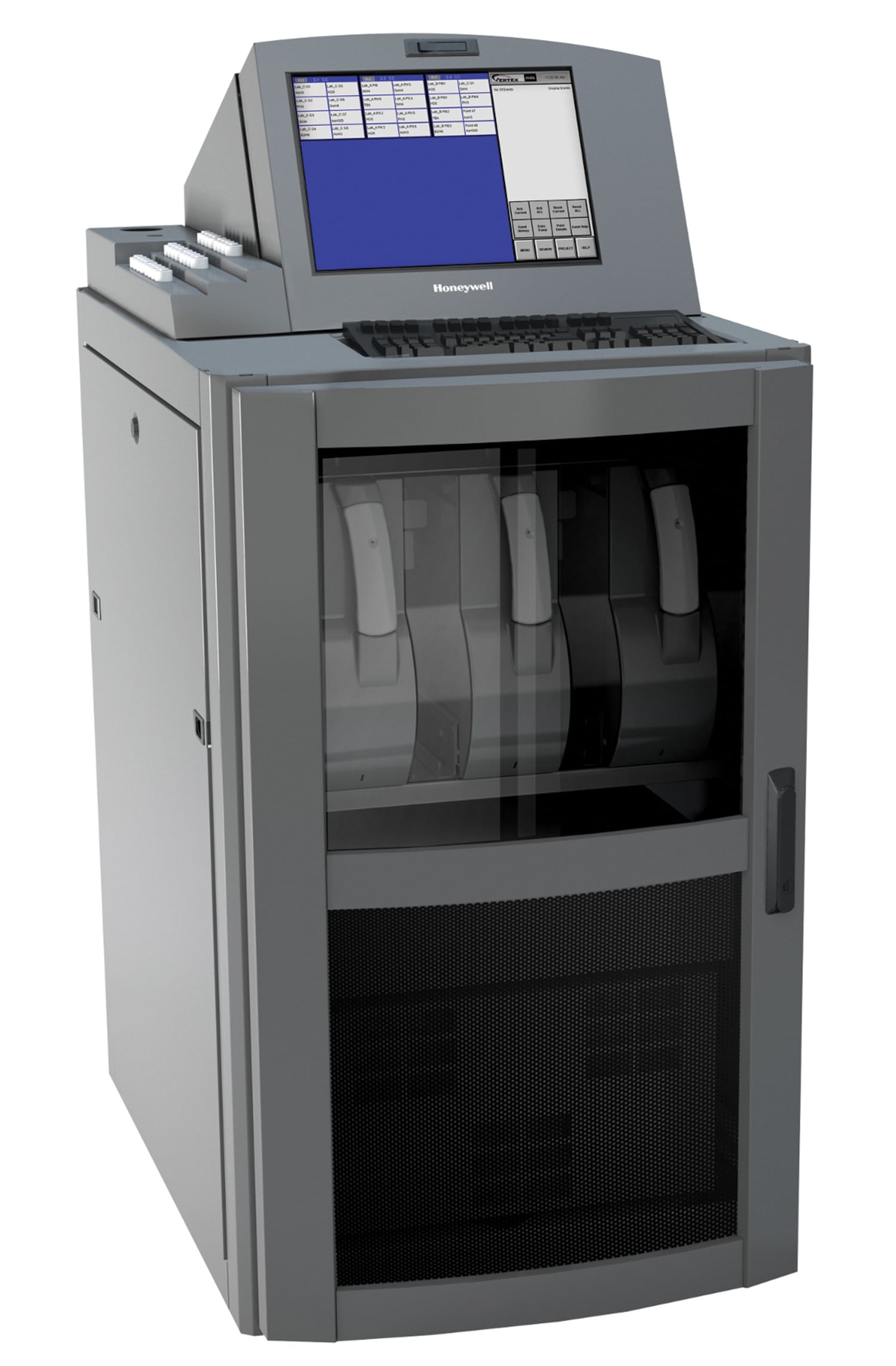

Vertex M

Provides a flexible 8 to 24 points of monitoring using colorimetric Chemcasstte®, the industry’s most reliable gas monitoring technology.
Features & Benefits
  • Longer monitoring life with extended tapes (90 days)
  • Touch screen for easy data access
  • No dynamic calibration required
Quick Specs
  • Power requirements: 110 or 230 VAC
  • Operating temperature: 59° to 95°F (15° to 35°C)
  • Operating humidity: 20-65% RH
Need Assistance?
Call: 1-800-538-0363
Enter your name and phone number and a Honeywell representative will contact you shortly.
SSL Lock SSL Secure
Don't worry, we won't share your phone and email address. (privacy policy)

Product Overview

Vertex M™ is an economical way to install, augment or upgrade a gas monitoring system for industries using toxic . It provides a flexible 8 to 24 points of monitoring for use with up to 3 Chemcassette analyzers or combination 1 pyrolyzer analyzer/1 universal Chemcassette analyzer; comes in a small, space-saving cabinet; 110V or 220V power options; and uses the industry’s most reliable toxic gas monitoring technology, colorimetric Chemcassette, which shows proof of a gas response through a telltale stain on the Chemcassette tape. The Vertex M integrates easily into a factory automation system or HMI to serve semiconductor, PV, nano, specialty chemical, lab and other High Tech/Industrial environments.

Additional Features and Benefits:

Cost Effective

  • Extended tapes (90 days) provides longer monitoring life
  • No calibration or flow balancing required
  • Additional pump and internal power module increase uptime
  • Software can be configured with out taking unit offline
  • Sampling points can be up to 400 feet (121m) from the monitor and routed to more than one analyzer.

Easy to use

  • Touch screen for easy access to data
  • Software updates via CD-ROM or network to all system components
  • Configuration profile editing and data retrieval are all achievable without taking unit offline
  • Radio frequency identification tag (RFID) ensures Chemcassettes® are installed into appropriately programmed analyzer, eliminating human error
  • On-line help system


  • Multiple levels of password protection
  • Reconfigure security setup without taking unit offline

Low cost of ownership

  • Small footprint and greater density of points reduce your cost per point
  • Eight points per analyzer lowers Chemcassette® costs
  • Maximized 24 point systems provide low cost per point as compared to other continuous monitors
  • One system monitors up to three gas families and more than 40 gases
  • You can split your sample to more than one analyzer

 Easy to maintain

  • Uses cost-effective XP Chemcassettes®, providing up to three months of continuous monitoring
  • Simplified replacement of Chemcassettes® and automated optics verification
  • No dynamic calibration required
  • No flow balancing
  • Easy access to analyzers, pumps, power supplies and touch screen from front panel
  • Onscreen interactive electronic manual

 Advanced communications

  • Built-in configurable PLCs with optional 64 relay contacts
  • Standard OPC interface for easy integration into your existing factory automation system or HMI
  • Optional Ethernet/CIP, LONWORKS®, DeviceNetTM, DF1Interface, PROFIBUS, Modbus Plus, Modbus/TCP or ControlNet outputs available
Toxic Gas Monitoring System - Vertex M


No Photo Available

Vertex M 16 Channel Non-Isolated Relay Option


16 Channel Non-Isolated Relay Option. Total of sixty-four (64) factory installed and field programmable Form A relays. Within each group of eight relays one side connected to a common terminal.

No Photo Available

Vertex M Chemcam


Chemcam (one per analyser). Must be factory installed.

No Photo Available

Vertex M Sample Line Integrity Kit

The Sample Line Integrity Kit for the Vertex MTM enables an automatic scheduled pressure test of each sample line to confirm integrity. Kit includes a software license, 8 check valves, and the associated accessories for a single analyser.
No Photo Available

Vertex M Universal Chemcassette® Analyser


Universal Chemcassette® analyser: Each analyser can monitor up to eight (8) sample points.
